Pre-finished linings that take wet trades off your programme.
Powder-coated plasterboard for walls and ceilings, in standard and wet-area grades. Fix it with matching trims and it’s finished.
500 prefab buildings, on deadline. Board waste under 1% vs an industry 15%. Labour and cleanup savings more than covered the board price. ATCO case study →
Re-fit and reopen sooner
- No wet trades or drying time – ideal for renovations under time pressure
- No dust, sanding or paint fumes – work around occupied buildings
- Hygiene White and wet-area grade for medical, education and bathrooms
- Durable, low maintenance surface, easily repaired on site
There’s no way we could have finished on time with traditional methods.Richard Hale, Architect on Rayonier office renovation
There’s no plastering, no sanding, no dust, no painting, no fumes.Phill Ford, builder on the Elim Pukekohe renovation
Wet area performance at half the price
An economic lining for commercial and residential wet areas, where functionality and budget are important.
Take the bottleneck out of the production line
- Line and finish modules in a fraction of the time – faster throughput on the factory floor
- Removes the plaster, drying and painting stages that bottleneck the production line
- No joint cracking when modules are transported – trims allow for movement in transit
- One trade, one step, fewer handovers and a cleaner factory
not 6
Boards arrive finished. Install them and the room is done – no waiting on plasterers, drying or painters.
Boards and trims, an exact match
Boards and aluminium jointers are all powder coated with the same powder, ensuring a consistent and exact match.
Specifications
- Thickness
- 10 & 13mm thick board manufactured with a square edge (i.e. no tapered edges)
- Sizes
- 2400mm & 2700mm lengths x 1200/1195mm wide
- Grades
- Standard and wet area grade plasterboard
- Trims
- Two Piece 3m length colour matching jointers: internal, external corners, panel jointer, skirting and scotia trim
Compliance
Statement of Building Code Compliance
- Durability (B2.3.1c) — 5 years
- Hazardous Building Materials (F2)
- Reaction to Fire C/UM2 Group 1-S
Scope of Use
- Non load bearing commercial partitions and walls
- Wet area wall lining for kitchens, bathrooms and laundries
- Ideal for OSM construction methods
- Can be used as an overlay for fire rated partitions
- Where a Group 1-S reaction to fire is required
Limitations on Use
- Not suitable for wet wall linings such as shower enclosures (suitable for wet area linings)
- Interior use only
- Non load bearing walls only
Churches, kindergartens, medical centres, schools and prefab
Construction of 500 prefab transportable buildings using Climateline for the walls & ceilings
Board waste was less than 1% compared to the industry standard of 15%, which provided a significant cost saving.
Read case study →

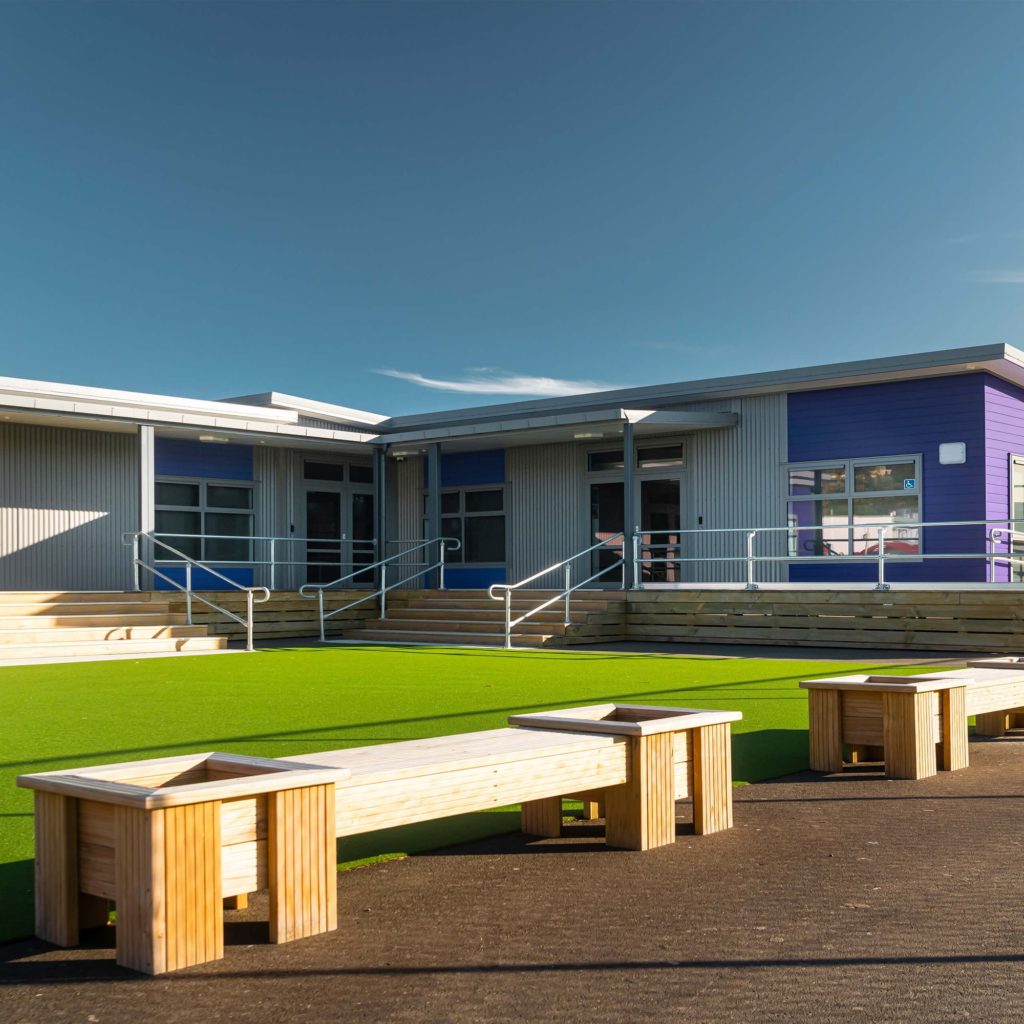

Climateline helps throughput on Niche Modular’s education builds
Volumetric construction, matched with aligned materials and systems, meeting complex educational needs with speed, quality and control.
Read case study →

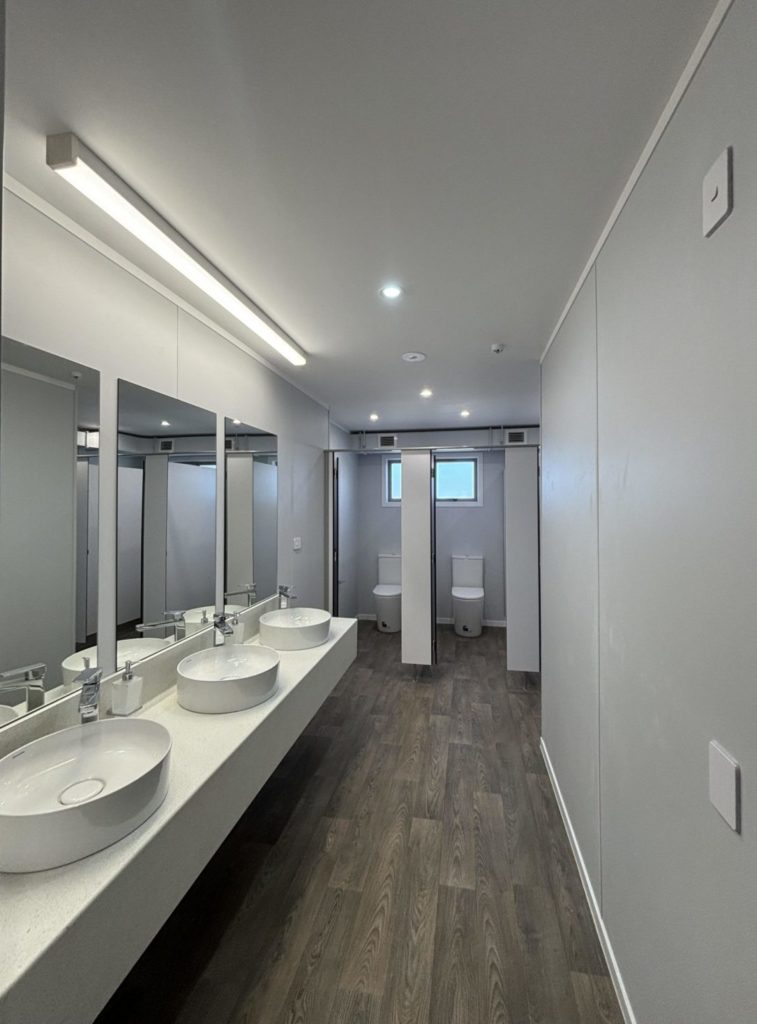

Climateline – an ideal durable lining for wet areas
Wet area and high hygiene wall lining solution made 100% in NZ, that won’t break the budget.
Read case study →Certified by Global GreenTag GreenRate Level B
One of the world’s most robust, trusted and widely recognised ecolabels. View the certification
Manufactured by Climate Surfaces in Auckland New Zealand, Climateline is made from GIB® plasterboard that is custom made to specification, it is then powder coated using Climate’s coating materials and processes.
- GIB® plasterboards have also achieved Global Greentag Certification Level A
- Winstone Wallboards is the first plasterboard manufacturer in Australasia to publish an Environmental Product Declaration (EPD)
- Climate manufactures its own custom made powder coating that is produced in-house, eliminating excess packaging waste and shipping
- Waste powder from the application process is reclaimed and re-used to make new powder, reducing waste powder to less than 1%
- The powder coating is cured using efficient infra-red energy
- Powder coating produces none or negligible VOCs and contain no water or solvents
Distributors
Australia
Platinum Timber & Ply
5 Aliciajay Circuit, Luscombe, QLD 4207
Climateline installers in New Zealand
North Island
South Island
Become a Climateline installer
Are you a builder, interior fit-out contractor or GIB® fixer and would like to become a Climateline installer? Contact us for a discussion.
